Racing Sim

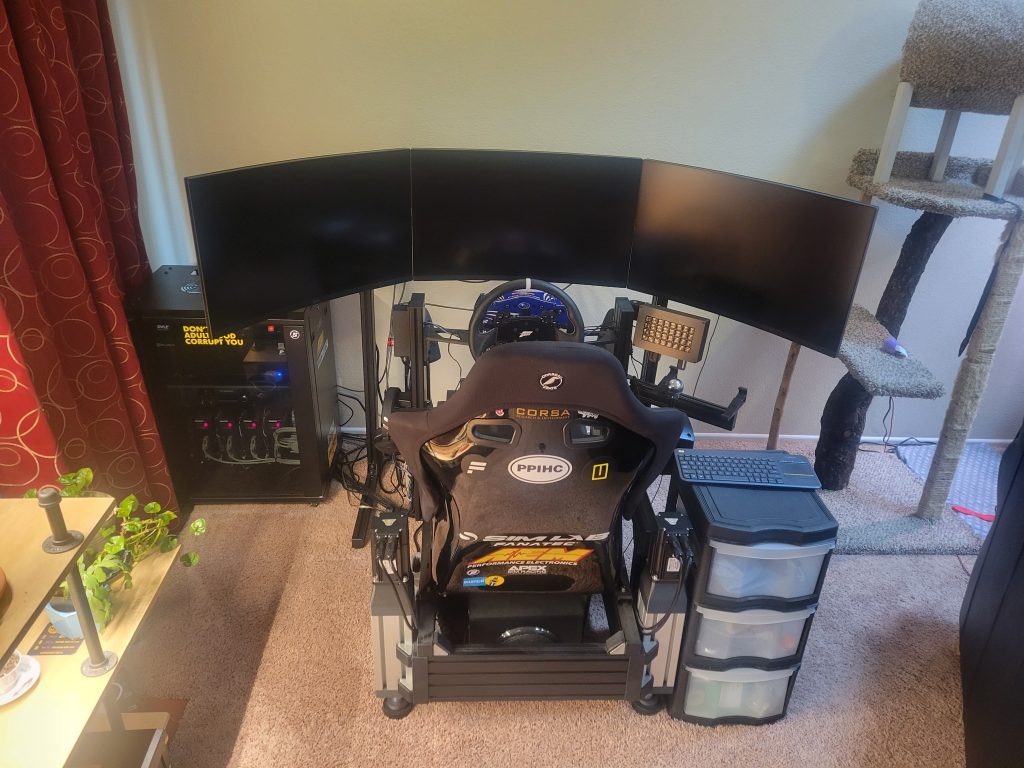

Here’s my Motion Racing Sim built around a Simlab P1-Xcockpit and SFX-100 linear actuators.

Equipment :

• Sim lab
  • P1-X Cockpit

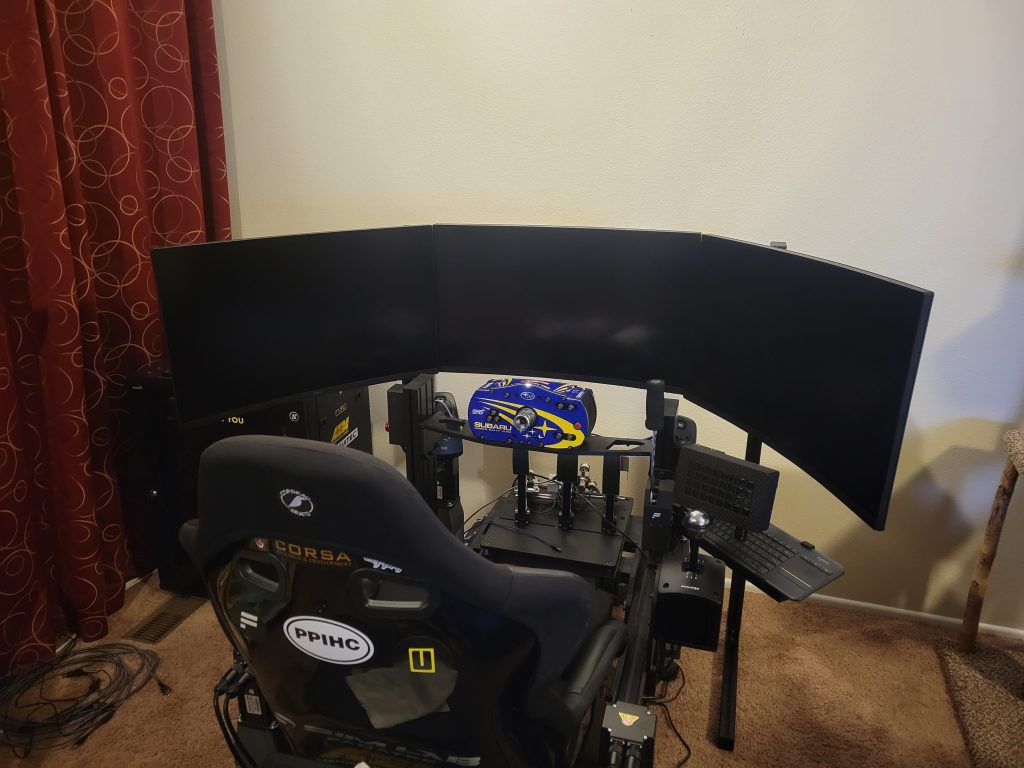

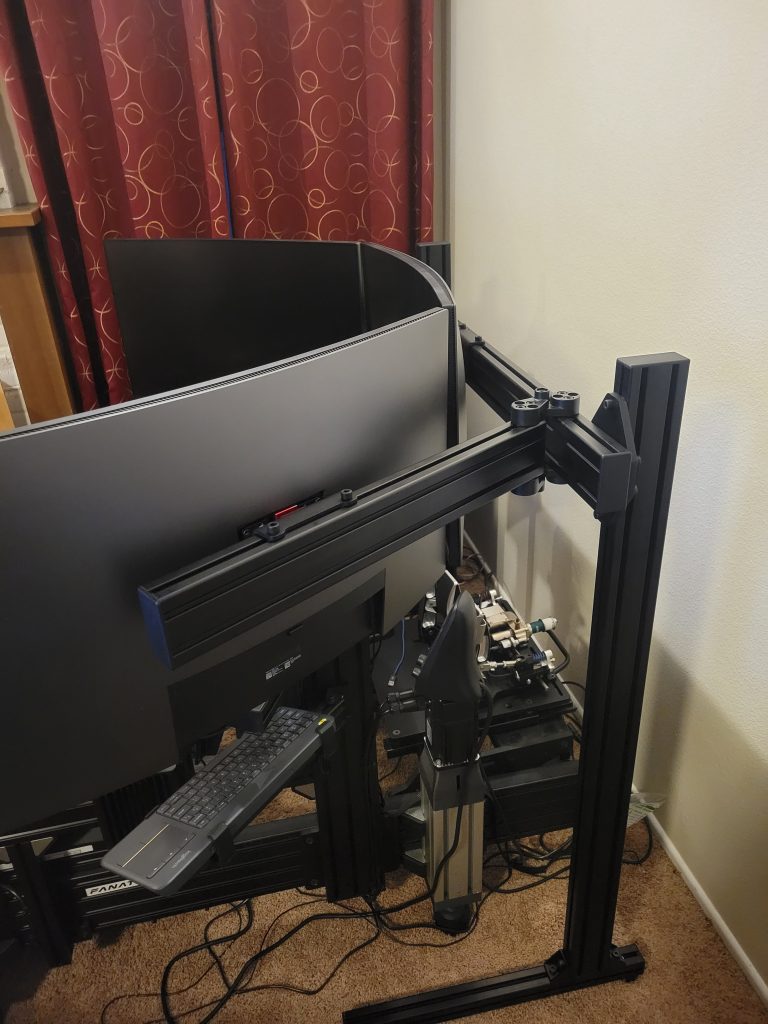

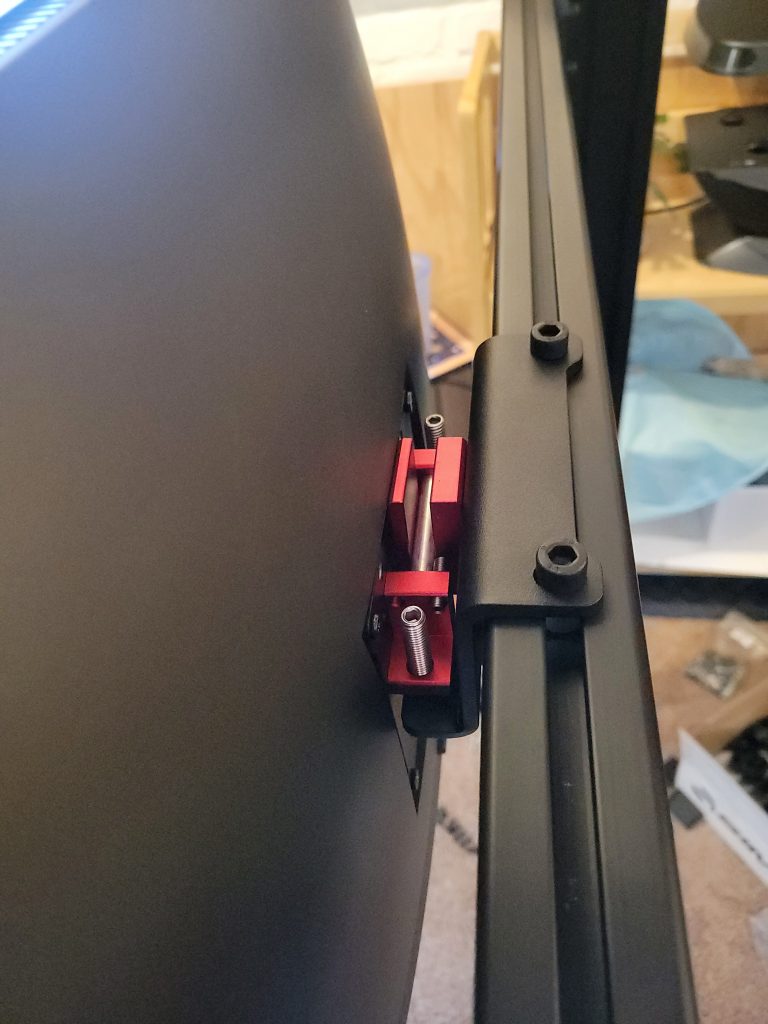

  • Triple Monitor stand with Vario mounts
  • Button box arm and mount
  • Speaker mounts
  • Sim Floor
  • Fanatec shifter and handbrake mounts
  • HPP Pedal mount for PX-1
• Corbeau FX1 Pro wide seat
• Fanatec CSR v2.5 wheelbase
  • Wheel 1: Fanatec universal hub, Turn R320 wheel, Podium button module, magnetic paddle shifters

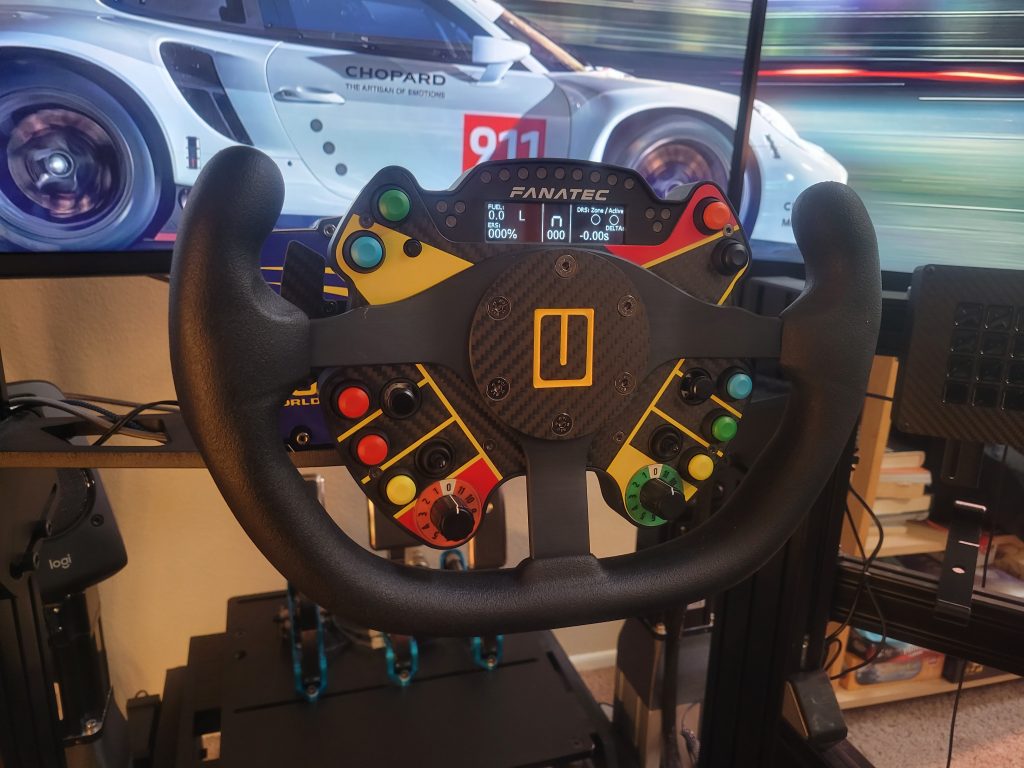

  • Wheel 2: Fanatec universal hub, Fanatec Clubsport GT wheel, magnetic paddle shifters
• Fanatec Clubsport v1.5 Shifter
• Fanatec Clubsport v1.5 Handbrake

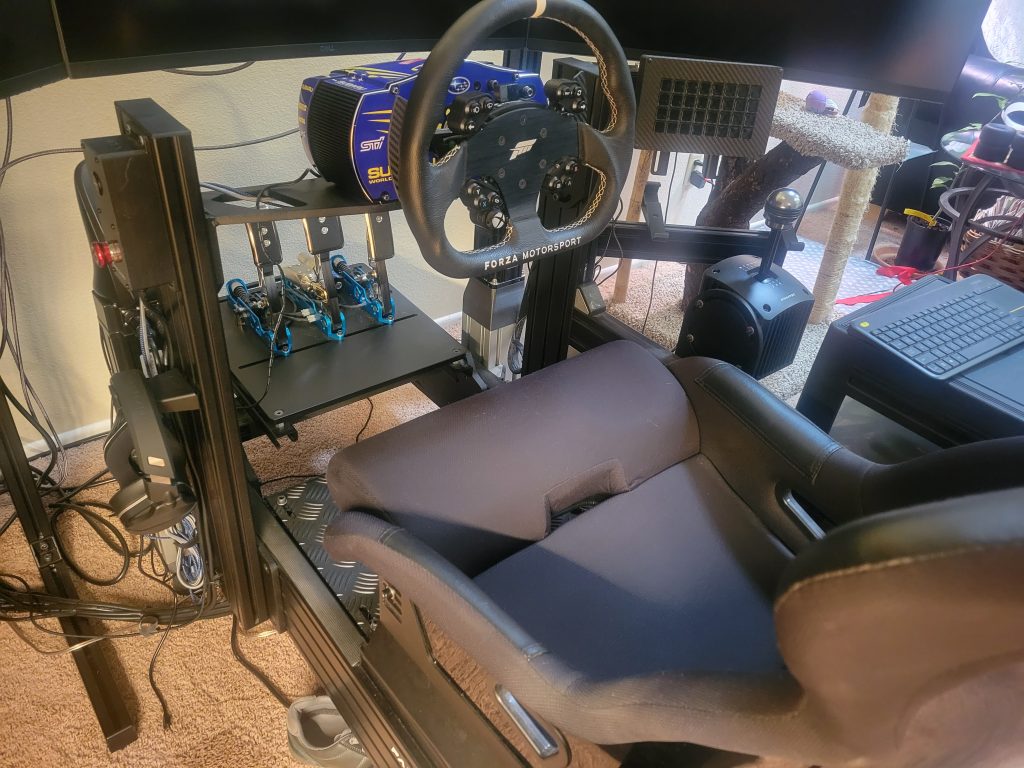

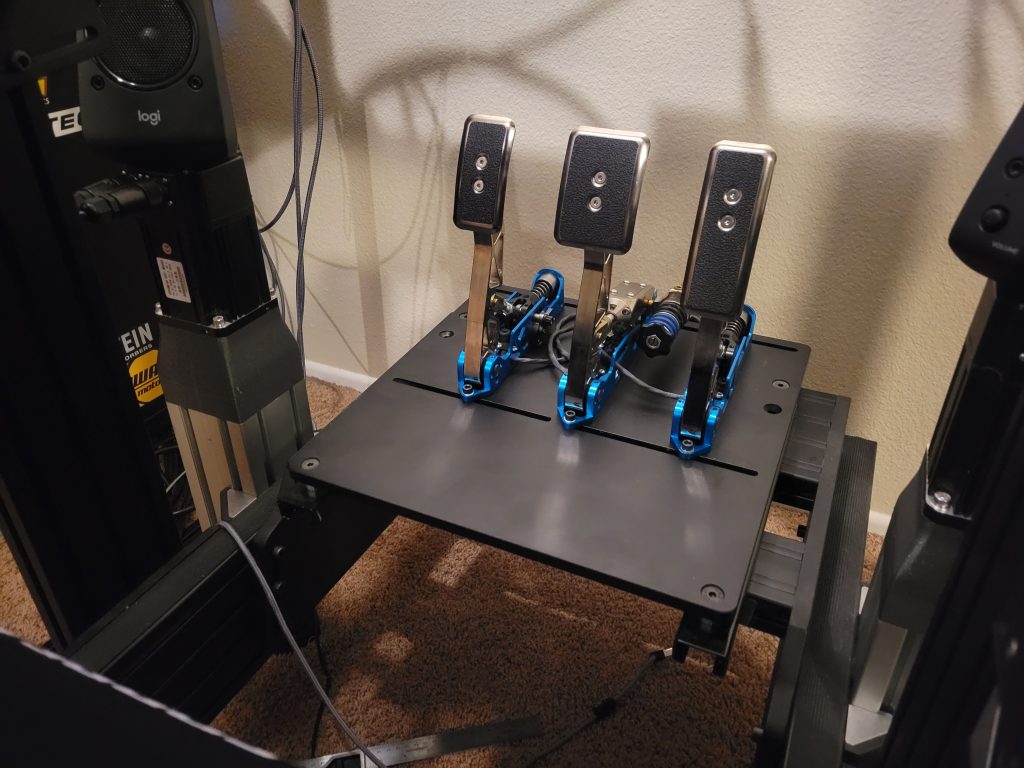

• HPP JBV 3P 3-pedal set with Hydraulic brake
• Streamdeck XL button box
• Apex Sim Racing
  • Button box with power and e-stop
  • Fanatec PSU holder
  • Sabrent 10-port USB Hub and holder
  • K400 keyboard holder
  • Streamdeck XL holder
• Logitech Z623 Speaker System with Subwoofer
• Bass Shakers
  • NC3000D amplifier
  • AuraSound AST-2B-4 shaker in front under the pedals
  • Clark Synthesis TST239 Silver Transducer in rear under the seat

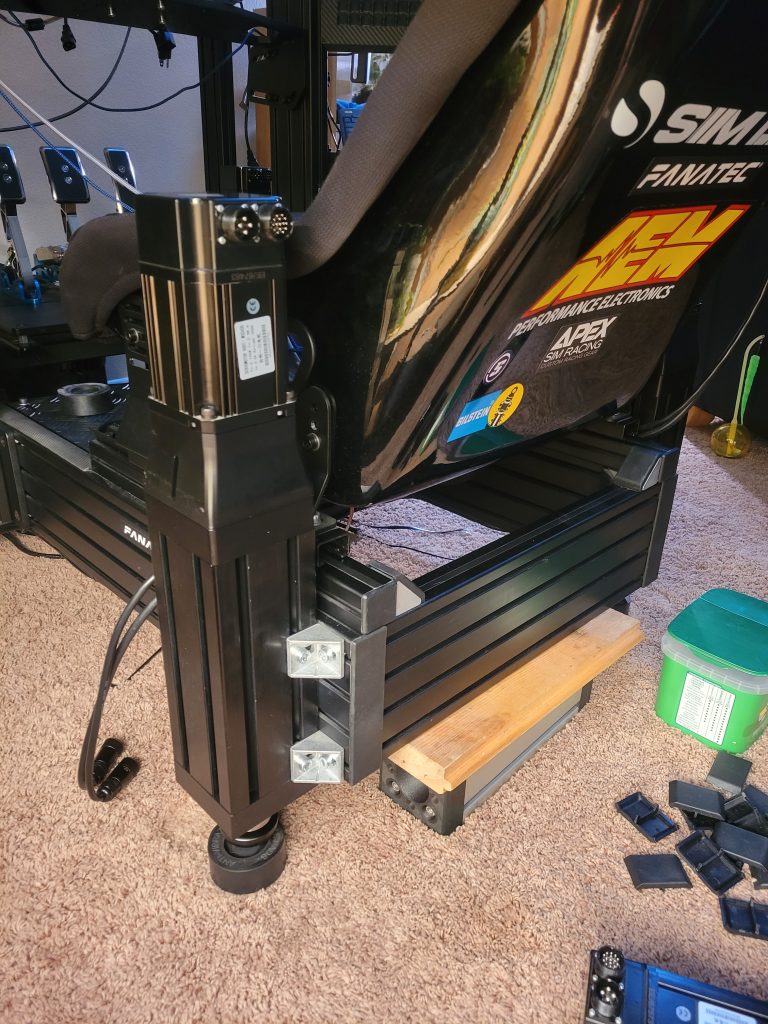

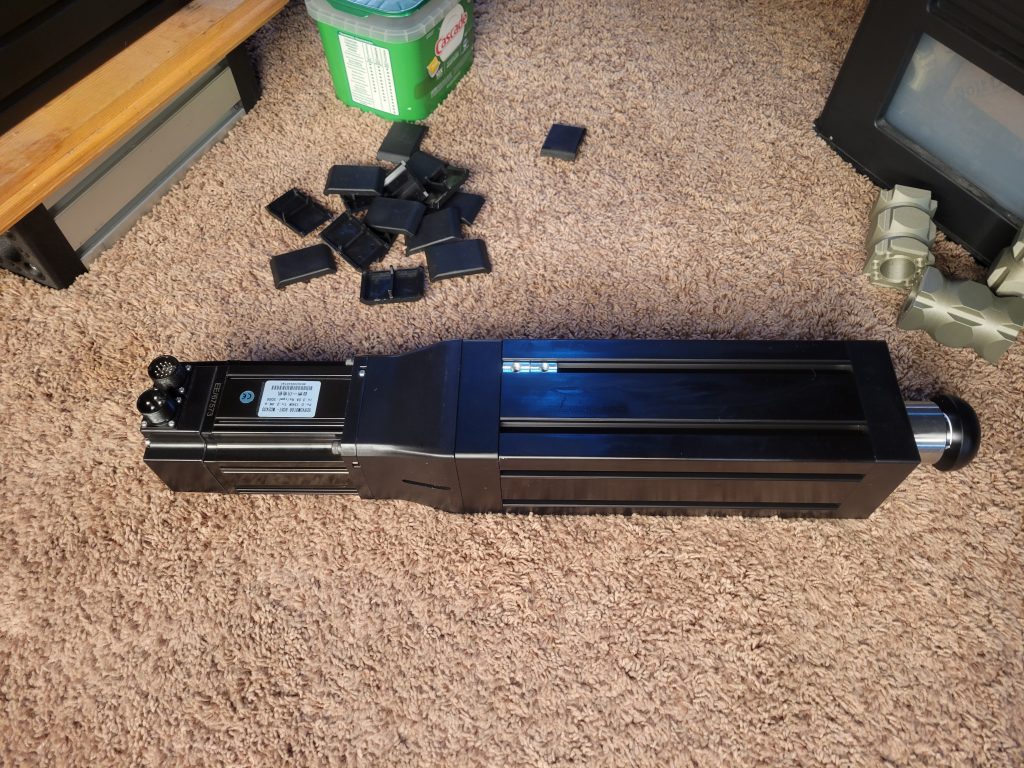

• SFX-100 linear actuators using Thanos AMC-AASD motion controller. 3D printed parts replaced with CNC’d parts.
• Triple Dell S3220DGF Monitors

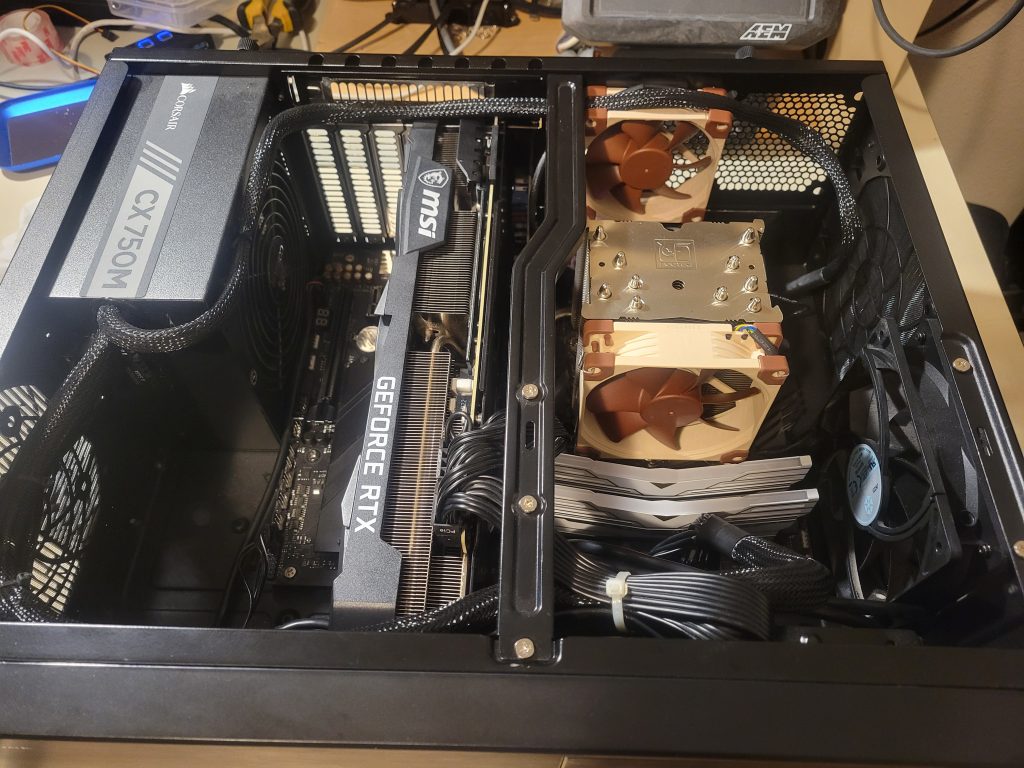

• Silverstone GD09 Rack mount HTPC case
  • Intel® Core™ i7-10700 Processor
  • ROG STRIX Z490-E Gaming motherboard
  • MSI GeForce RTX 3090 VENTUS 3X 24GB
  • OLOy DDR5 RAM 32GB (2x16GB)
• K400 Plus Wireless Touch Keyboard

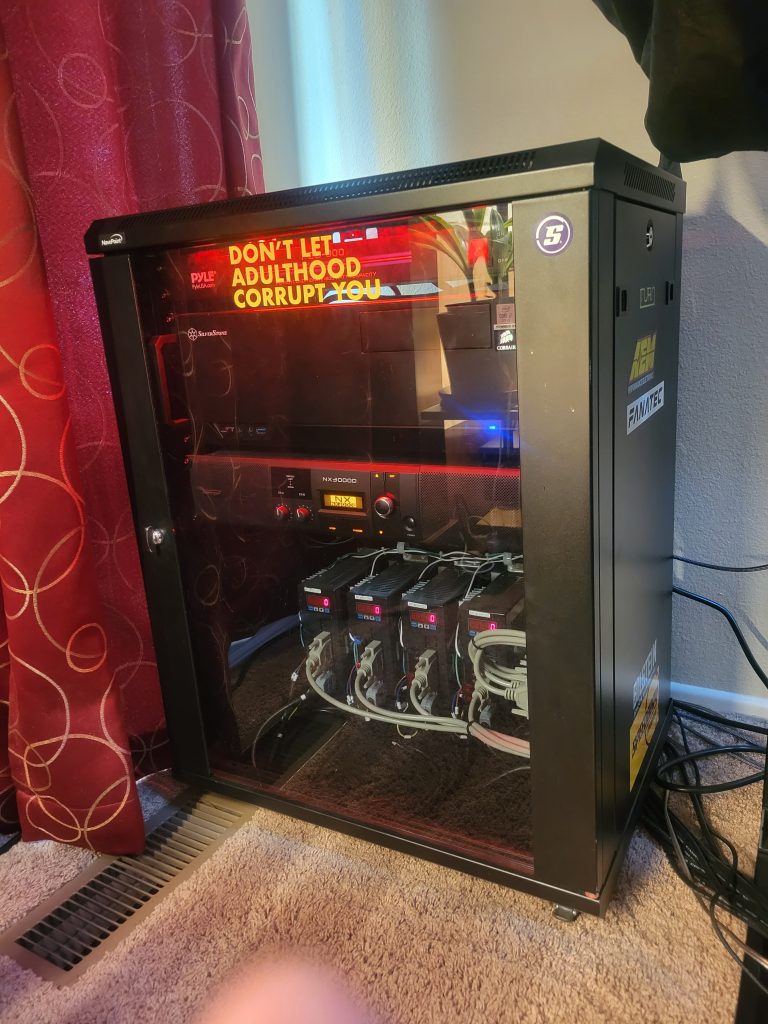

• 15u server rack
• Pyle-Pro PCO800 19” Rack Mount 1800 Watt Power Conditioner
